Low Oil Sensor Bypass Test – Troubleshooting Procedure

This procedure will help determine whether the low oil sensor is preventing the generator from starting or causing the generator to shut down unexpectedly.

⚠ Important:
Only perform this test after confirming the generator has the correct oil level.

The low oil sensor is a safety feature designed to protect the engine from damage caused by low oil levels.

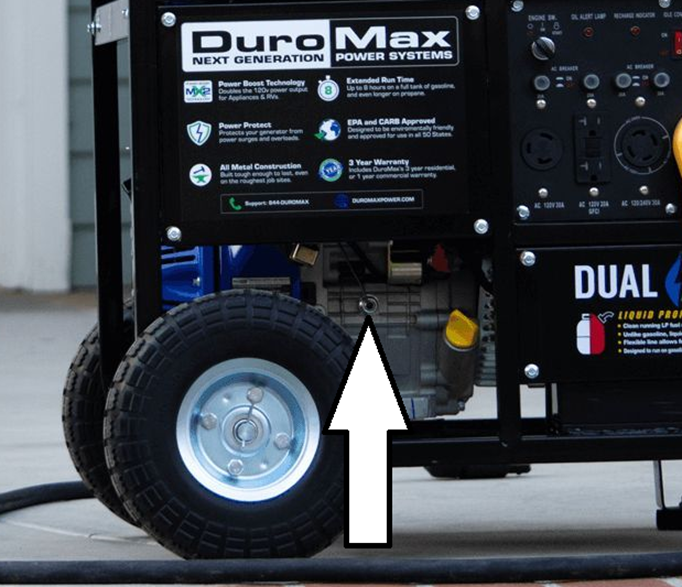

Step 1: Locate the Low Oil Sensor Wire

First, locate the low oil sensor wire on the engine.

The sensor wire is located:

• On the side of the engine crankcase

• Near the oil fill/dipstick area

• On the left side of the oil fill cap

This wire comes directly from the silver crankcase housing.

It will appear as:

• A single wire attached to a bolt or hex nut on the engine

• The wire color may be black or yellow, depending on the generator model

(See image above for reference.)

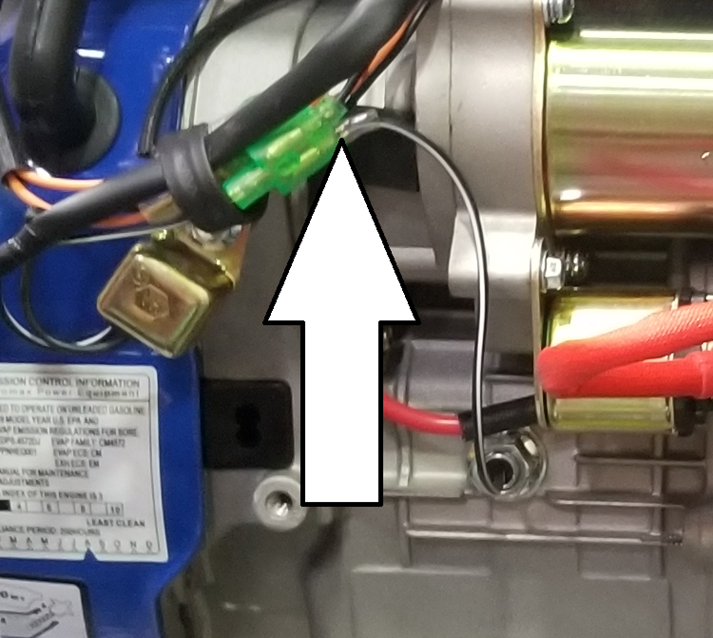

Step 2: Locate the Wire Disconnect

Follow the sensor wire upward until you find the first plastic connector (green disconnect plug).

This connector joins the low oil sensor wire to the generator wiring harness.

Some models may have a black rubber protective sleeve covering the connector.

If present:

1. Slide the rubber sleeve upward along the wire.

2. This will expose the green plastic connector.

Step 3: Disconnect the Low Oil Sensor Wire

Once the connector is visible:

1. Disconnect the sensor wire coming from the crankcase from the green connector.

2. Leave the rest of the wiring harness connected.

You should now have only the crankcase sensor wire disconnected.

(See image above showing the disconnect location.)

Step 4: Attempt to Start the Generator

With the sensor wire disconnected, attempt to start the generator normally.

Test Results

If the generator starts and runs normally:
The low oil sensor may be malfunctioning.

This can sometimes occur due to:

• Oil residue from factory testing

• Dirt or debris interfering with the sensor

In this case, the sensor can remain disconnected temporarily until the next oil change, as fresh oil may resolve the issue.

If the generator still does not start:
The issue is likely not related to the low oil sensor, and further troubleshooting will be required.

After Completing the Test

Once troubleshooting is complete:

• Reconnect the low oil sensor wire

• Ensure all wiring connectors are secure

The low oil sensor should normally remain connected to protect the engine.

When to Replace the Low Oil Sensor

The low oil sensor may require replacement if:

• The generator runs normally only when the sensor is disconnected

• The issue continues even after an oil change

• The sensor repeatedly triggers shutdown with proper oil levels

Replacement of the low oil sensor is typically recommended to be performed by a qualified repair technician.

AI Search Triggers (Internal Use)

low oil sensor bypass generator
generator low oil shutdown test
generator low oil sensor disconnect
generator won't start low oil sensor
generator shuts off low oil sensor
generator low oil protection troubleshooting
generator sensor bypass test

✅ Support Tip:
Many low oil sensor issues are caused by residue from factory oil or debris on the sensor probe. Performing an oil change often resolves the issue without replacing the sensor.
