Connecting Negative Terminal To BatteryUpdated a year ago

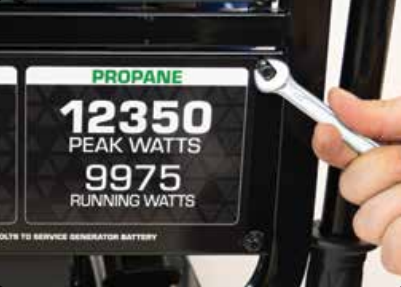

Step 1.) Remove the battery cover

. Remove the battery cover plate using the wrench from the toolkit.

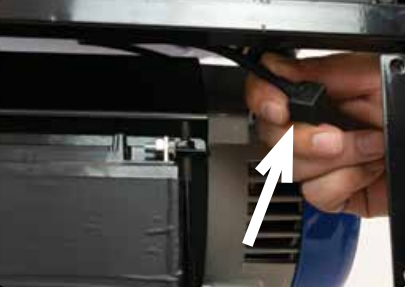

Step 2.) Locate the negative cable

The negative battery cable can be located tucked in underneath the gas tank above the motor. Once located, route the free end to the negative battery terminal.

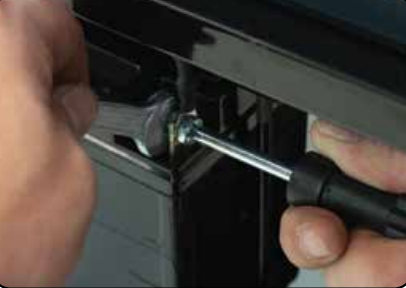

Step 3.) Connect the negative cable

Push the black rubber boot up the wire to expose the connector.

Securely connect the free end of the battery cable to the negative battery terminal using the screw and nut from the battery with the screwdriver and wrench from the toolkit.

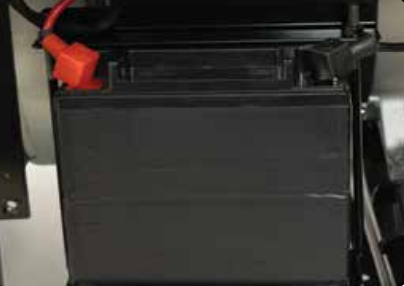

Step 4.) Reinstall the battery plate

Cover the connected terminal with the black rubber boot.

Reinstall the battery cover plate using the wrench from the toolkit.
