XP10000HX - SpecificationsUpdated a month ago

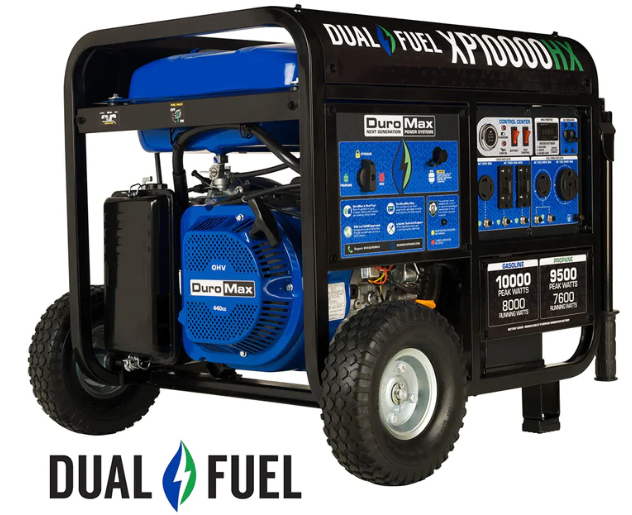

XP10000HX Generator Specifications
NOTE: This model has been discontinued and no longer in production and no longer can be purchased new.
⭐ Key Features & Highlights
Dual Fuel Capability – Runs on gasoline or propane for flexible fuel options.
High Power Output – Delivers up to 10,000 peak watts for home backup and jobsite use.
100% Copper Windings – Provides stable, reliable power output.
Electric Start – Easy push-button starting with recoil backup.
All Metal Construction – Built for durability and long-term performance.
5-Year Warranty – Backed by industry-leading coverage.
Power Output
Gasoline
Peak Wattage: 10,000W
Running Wattage: 8,000W
Running Amps (120V): 66.67A
Running Amps (240V): 33.33A
Runtime @ 25% Load: 22 hours
Runtime @ 50% Load: 10 hours
Propane
Peak Wattage: 9,500W
Running Wattage: 7,600W
Running Amps (120V): 63.33A
Running Amps (240V): 31.67A
Runtime @ 25% Load: 17 hours
Runtime @ 50% Load: 9 hours
Engine & Emissions
Engine Manufacturer: DuroMax Power Equipment
Engine Type: 4-Stroke
Valve Type: OHV
Cooling Type: Forced Air
Engine Size: 439cc
Engine Speed: 3600 RPM
Starting & Operation
Starting Type: Push Button
Electric Start: Yes
Recoil Start: No
Idle Control: No Load Low Idle
Fuel System: Carburetor
Fuel Types: Gasoline & Propane
Oil & Maintenance
Oil Type: 10W-30
Oil Types Supported: Conventional, Blended, Synthetic
Oil Capacity: 37.2 oz
Oil Cooling: Splash
Low Oil Shutdown: Yes
Safety & Compliance
CO Sensor Shutdown: Yes
EPA Certified: Yes
California-State Compliant: No
Generator Features
Voltage: 120 / 240V
Frequency: 60 Hz
GFCI Outlets: Yes
Automatic Voltage Regulator: Yes
Winding Material: 100% Copper Windings
Control Panel
Battery Switch: Yes
Volt Meter: Digital
Hour Meter: Yes
Outlets
5-20R (120V): 4
L5-30R: 1
L14-30R: 1
14-50R: 1
Fuel & Tank
Fuel Tank Capacity (Gasoline): 8.3 gallons
Fuel Gauge: Yes
Suggested Propane Tank: 40 lb minimum
Propane Hose & Regulator: Included
Battery
Battery Type: 12V SLA
Battery Included: Yes
Build & Dimensions
Product Dimensions: 29" L × 30" W × 26" H
Dry Weight: 228 lbs
Total Weight: 231 lbs
Construction: All-metal
Noise Level
Noise Level: 72 dB
Applications / Best Use Cases
The XP10000HX is designed for mid-to-large power needs, making it ideal for:
✅ Home Backup (Expanded Essentials)
Refrigerator & freezer
Lights and outlets
Microwave
Washer/dryer (gas dryer recommended)
Sump pump
✅ HVAC Support
Window AC units
Smaller central AC systems (with soft start recommended)
✅ Jobsite Use
Power tools
Air compressors
Multiple tools simultaneously
✅ Emergency Preparedness
Reliable backup during outages
Long runtime capability
What Can This Generator Run? (Quick Guidance)
With 8,000 running watts, this generator can typically power:
✔ Core Home Essentials
Refrigerator + freezer
Lights and outlets
Microwave
TV and internet
✔ Larger Appliances
Sump pump
Well pump
Washer/dryer (gas dryer preferred)
✔ HVAC Systems
Window AC units
Small central AC (with soft start recommended)
✔ Jobsite Equipment
Table saws
Air compressors
Heavy-duty tools
⚠ Important Power Usage Disclaimer
The appliance examples listed above are general estimates only and may vary depending on the specific make, model, and starting wattage requirements of each device.
To ensure proper generator sizing and compatibility with your home or equipment, we strongly recommend consulting a licensed electrician to perform a power usage evaluation.
Additional Features
RV Ready: Yes
Home Backup Ready: Yes
Wheel & Handle Kit: Included
Wheel Type: Metal Hub
Wheel Diameter: 10"
Cylinder Sleeve: Cast Iron
Bearings: Stainless Steel Ball Bearing
Included in the Box
XP10000HX Generator
Propane Regulator
Oil Funnel
Spark Plug Wrench
Tool Set
Wheel & Handle Kit
Owner’s Manual
Product Info
Part Number: XP10000HX
UPC: 811640016210
Warranty: 5-Year
