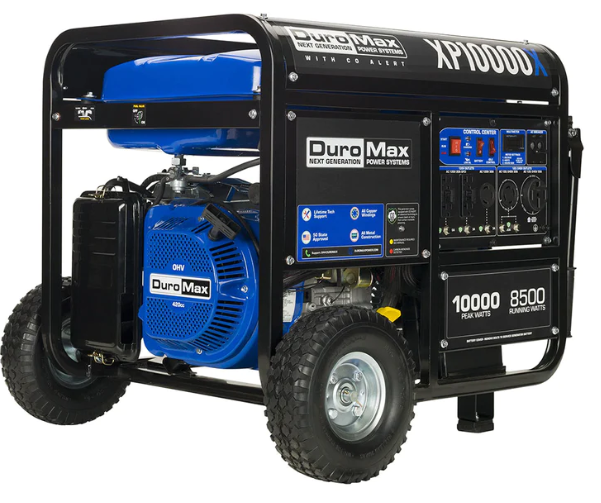

XP10000X Generator Specifications

NOTE: This model has been discontinued and no longer in production and no longer can be purchased new.

⭐ Key Features & Highlights

• Gasoline Powered – Simple and reliable single-fuel operation

• High Power Output – Delivers up to 10,000 peak watts for home backup and jobsite use

• 100% Copper Windings – Provides stable and dependable power output

• Electric Start – Easy operation with recoil backup

• All Metal Construction – Built for durability and long-term performance

• 5-Year Warranty – Backed by industry-leading coverage

Power Output

Gasoline

• Peak Wattage: 10,000W

• Running Wattage: 8,500W

• Running Amps (120V): 70.83A

• Running Amps (240V): 35.42A

• Runtime @ 25% Load: 22 hours

• Runtime @ 50% Load: 10 hours

Engine & Emissions

• Engine Manufacturer: DuroMax Power Equipment

• Engine Type: 4-Stroke

• Valve Type: OHV

• Cooling Type: Forced Air

• Engine Size: 420cc

• Engine Speed: 3600 RPM

Starting & Operation

• Starting Type: Rocker Switch

• Electric Start: Yes

• Recoil Start: Yes

• Idle Control: No Load Low Idle

• Fuel System: Carburetor

• Fuel Type: Gasoline

Oil & Maintenance

• Oil Type: 10W-30

• Oil Types Supported: Conventional, Blended, Synthetic

• Oil Capacity: 37.2 oz

• Oil Cooling: Splash

• Low Oil Shutdown: Yes

Safety & Compliance

• CO Sensor Shutdown: Yes

• EPA Certified: Yes

• California-State Compliant: No

Generator Features

• Voltage: 120 / 240V

• Frequency: 60 Hz

• GFCI Outlets: Yes

• Automatic Voltage Regulator: Yes

• Winding Material: 100% Copper Windings

Control Panel

• Battery Switch: Yes

• Volt Meter: Digital

• Hour Meter: Yes

Outlets

• 5-20R (120V): 4

• L5-30R: 1

• L14-30R: 1

• 14-50R: 1

Fuel & Tank

• Fuel Tank Capacity (Gasoline): 8.3 gallons

• Fuel Gauge: Yes

Battery

• Battery Type: 12V SLA

• Battery Included: Yes

Build & Dimensions

• Product Dimensions: 29" L × 30" W × 26" H

• Dry Weight: 220 lbs

• Total Weight: 228 lbs

• Construction: All-metal

Noise Level

• Noise Level: 72 dB

Applications / Best Use Cases

The XP10000X is ideal for mid-to-large power needs and dependable backup:

✅ Home Backup (Expanded Essentials)

• Refrigerator & freezer

• Lights and outlets

• Microwave

• Washer/dryer (gas dryer recommended)

• Sump pump

✅ HVAC Support

• Window AC units

• Smaller central AC systems (soft start recommended)

✅ Jobsite Use

• Power tools

• Air compressors

• Multiple tools simultaneously

✅ Emergency Preparedness

• Reliable backup during outages

• Long runtime capability

What Can This Generator Run? (Quick Guidance)

With 8,500 running watts, this generator can typically power:

✔ Core Home Essentials

• Refrigerator + freezer

• Lights and outlets

• Microwave

• TV and internet

✔ Larger Appliances

• Sump pump

• Well pump

• Washer/dryer (gas dryer preferred)

✔ HVAC Systems

• Window AC units

• Small central AC (soft start recommended)

✔ Jobsite Equipment

• Table saws

• Air compressors

• Heavy-duty tools

⚠ Important Power Usage Disclaimer

The appliance examples listed above are general estimates only and may vary depending on the specific make, model, and starting wattage requirements of each device.

To ensure proper generator sizing and compatibility with your home or equipment, we strongly recommend consulting a licensed electrician to perform a power usage evaluation.

Additional Features

• RV Ready: Yes

• Home Backup Ready: Yes

• Wheel & Handle Kit: Included

• Wheel Type: Metal Hub

• Wheel Diameter: 10"

• Cylinder Sleeve: Cast Iron

• Bearings: Stainless Steel Ball Bearing

Included in the Box

• XP10000X Generator

• Oil Funnel

• Spark Plug Wrench

• Tool Set

• Wheel & Handle Kit

• Owner’s Manual

Product Info

• Part Number: XP10000X

• UPC: 811640016593

• Warranty: 5-Year
