XP12000HX - SpecificationsUpdated a month ago

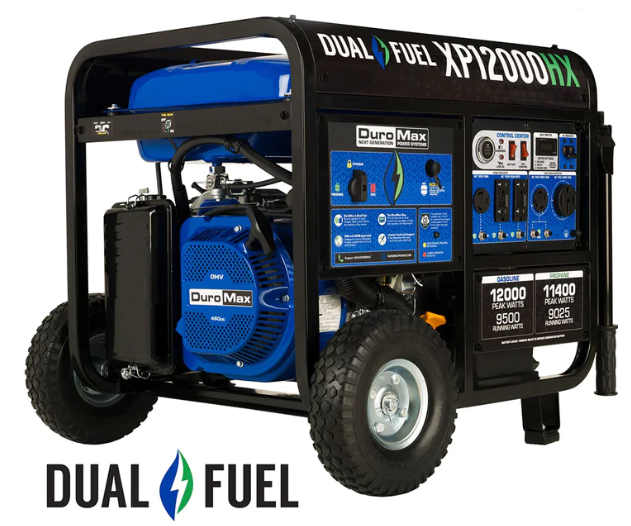

XP12000HX Specifications
| Gasoline | |
| Peak Wattage | 12,000 |
| Running Wattage | 9,500 |
| Running Amperage at 120V | 79.17 |
| Running Amperage at 240V | 39.58 |
| Runtime at 25% Load | 19 |
| Runtime at 50% Load | 9 |
| Propane | |
| Peak Wattage | 11,400 |
| Running Wattage | 9,025 |
| Running Amperage at 120V | 75.21 |
| Running Amperage at 240V | 37.6 |
| Runtime at 25% Load | 14 |
| Runtime at 50% Load | 7 |
| Engine & Emission Specifications | |
| Engine Manufacturer | DuroMax Power Equipment |
| Engine Type | 4-Stroke |
| Valve Type | OHV |
| Engine Cooling Type | Forced Air |
| Engine Size | 457cc |
| Engine Speed | 3600 RPM |
| Starting Type | Push Button |
| Electric Start | Yes |
| Recoil Start | Yes |
| Idle Control | No Load Low Idle |
| Fuel Delivery System | Carburetor |
| Fuel Types | Gasoline and Propane |
| Oil Cooling Type | Splash |
| Recommended Oil | 10W-30 |
| Recommended Oil Types | Blended, Conventional, or Synthetic |
| Oil Capacity | 40.5 fluid oz |
| Suggested Propane Tank Size | 40 lbs. minimum |
| Automatic Low Oil Shutdown | Yes |
| Cast Iron Sleeve | Yes |
| Bearing Type | Stainless Steel Ball Bearing |
| CO Sensor Shutdown | Yes |
| EPA Certified | Yes |
| CARB Certified | Yes |
| 50 State Emissions | Yes |
| Panel Specifications | |
| GFCI Outlets | Yes |
| Battery Switch | Yes |
| Volt Meter | Digital |
| Hour Meter | Yes |
| 5-20R | 4 |
| L5-30R | 1 |
| L14-30R | 1 |
| 14-50R | 1 |
| Generator Specifications | |
| Manufacturer | DuroMax Power Equipment |
| Part # | XP12000HX |
| Voltage | 120/240 Volts |
| Frequency | 60 Hertz |
| GFCI Outlets | Yes |
| Propane Hose & Regulator | Included |
| Winding Material | 100% Copper Windings |
| Automatic Voltage Regulator | Yes |
| Battery Type | 12V SLA |
| Battery Included | Yes |
| RV Ready | Yes |
| Home Backup Ready | Yes |
| Fuel Tank Capacity Gasoline | 8.3 Gallons |
| Fuel Gauge | Yes |
| All Metal Construction | Yes |
| Product Dimensions | 29"-Long x 30"-Wide x 26"-High |
| Product Dry Weight | 230-lbs |
| Product Weight | 240-lbs |
| Volume (db) | 74 dB |
| UPC | 811640016227 |
| Warranty | 5 Year |
| Wheel & Handle Kit | Included |
| Wheel Type | Metal Hub |
| Wheel Diameter | 10-Inches |
| What's in the Box? | XP12000HX Generator, Oil Funnel, Spark Plug Wrench, Tool Set, Wheel & Handle Kit, Propane Regulator, and Owner's Manual |
