XP12000HX Parts ListUpdated a month ago
The Following is a current list of replacement parts for the DuroMax XP12000HX Generator.
Battery (Sealed Lead Acid):
- Part # DMXP-BAT-3
- Website Link: DMXP-BAT-3 (Click Here)
- Price: $59.99
- Shipping: $12.95 (Within the contiguous 48 states)
- Voltage: 12 Volt
- Amp Hour: 10aH
- Dimensions (LWH): 6-Inches x 3-3/8-Inches x 5-1/4-Inches
Battery (Gel):
- Part # DMXP-BAT-3G
- Website Link: DMXP-BAT-3G (Click Here)
- Price: $59.99
- Shipping: $12.95 (Within the contiguous 48 states)
- Voltage: 12 Volt
- Amp Hour: 10aH
- Dimensions (LWH): 5.90-Inches x 3-Inches x 5.11-Inches
Spark Plug:
- Part # DMXP-SPK-1
- Website Link: DMXP-SPK-1 (Click Here)
- Price: $7.95
- Shipping: $8.95 (Within the contiguous 48 states)
- Thread Diameter: 14mm
- Thread Pitch: 1.25mm
- Brand: NGK
- Model: BPR6ES

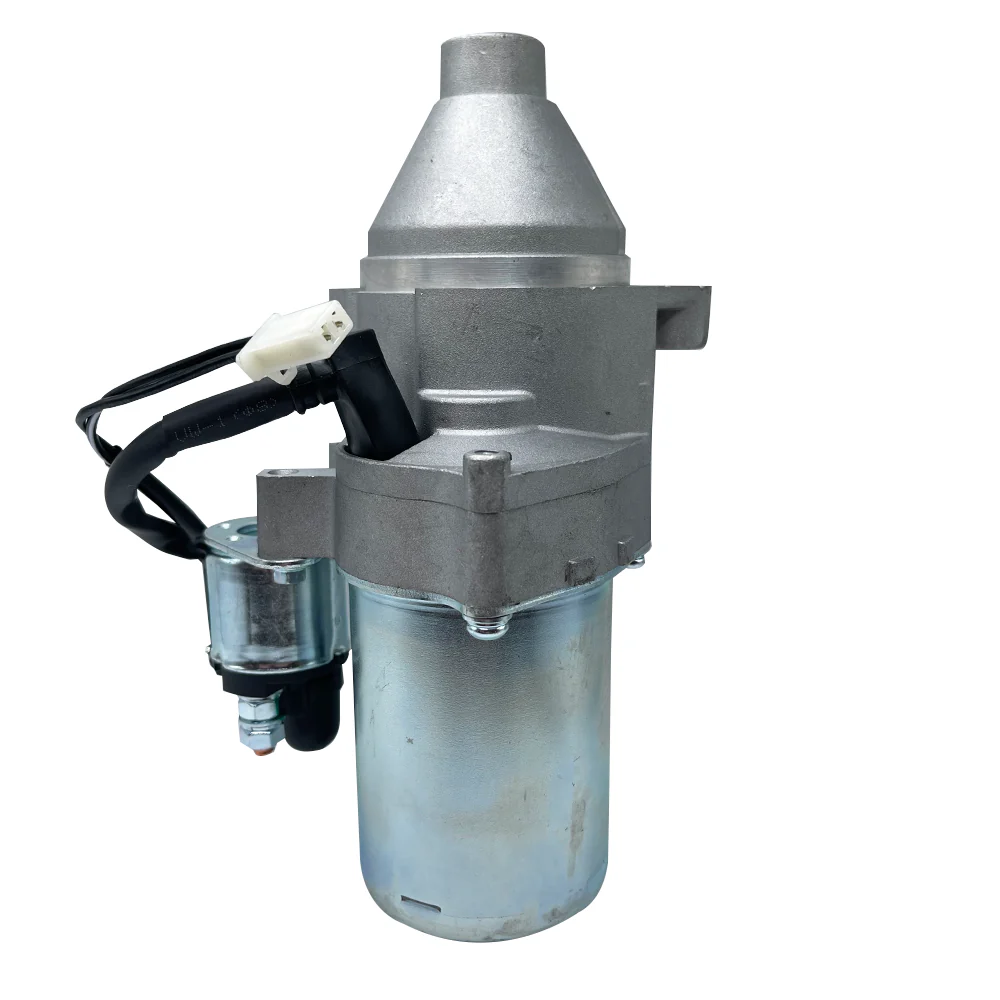

Starter Motor With Solenoid:
- Part # DMXP-12HX-STR
- Website Link: DMXP-12HX-STR (Click Here)
- Price: $59.99
- Shipping: $12.95 (Within the contiguous 48 states)

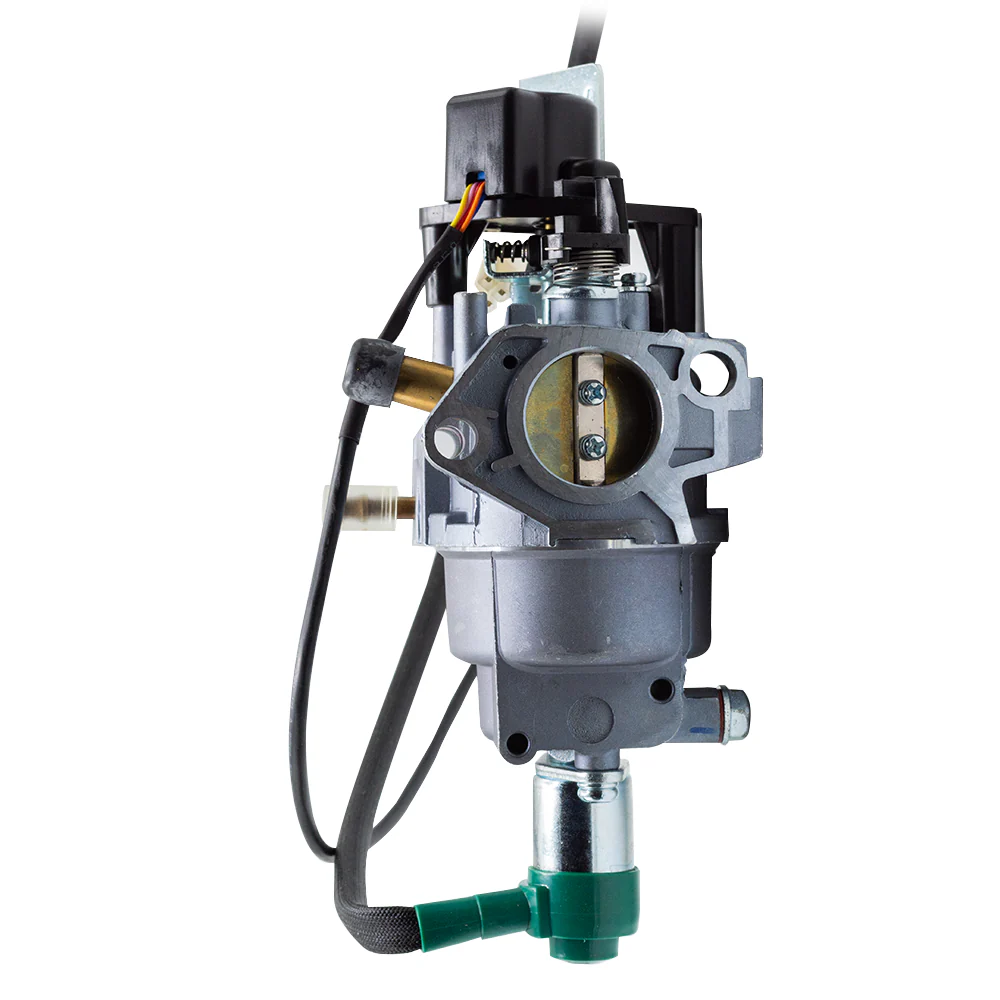

Carburetor:
- Part # DMXP-12HX-CARB
- Website Link: DMXP-12HX-CARB (Click Here)
- Price: $39.99
- Shipping: $12.95 (Within the contiguous 48 states)
- Mounting Gaskets Included: NO

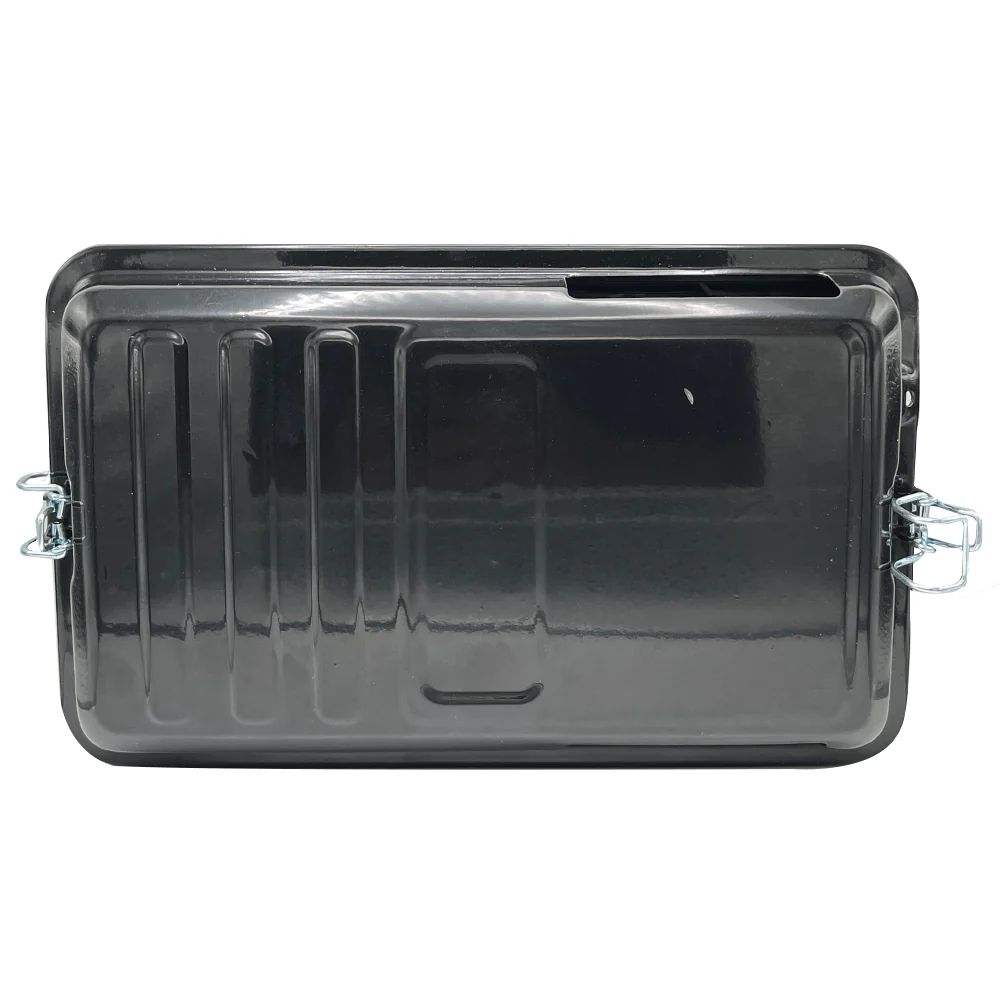

Air Filter Enclosure Assembly:
- Part # DMXP-12HX-AFA
- Website Link: DMXP-12HX-AFA (Click Here)
- Price: $39.99
- Shipping: $8.95 (Within the contiguous 48 states)

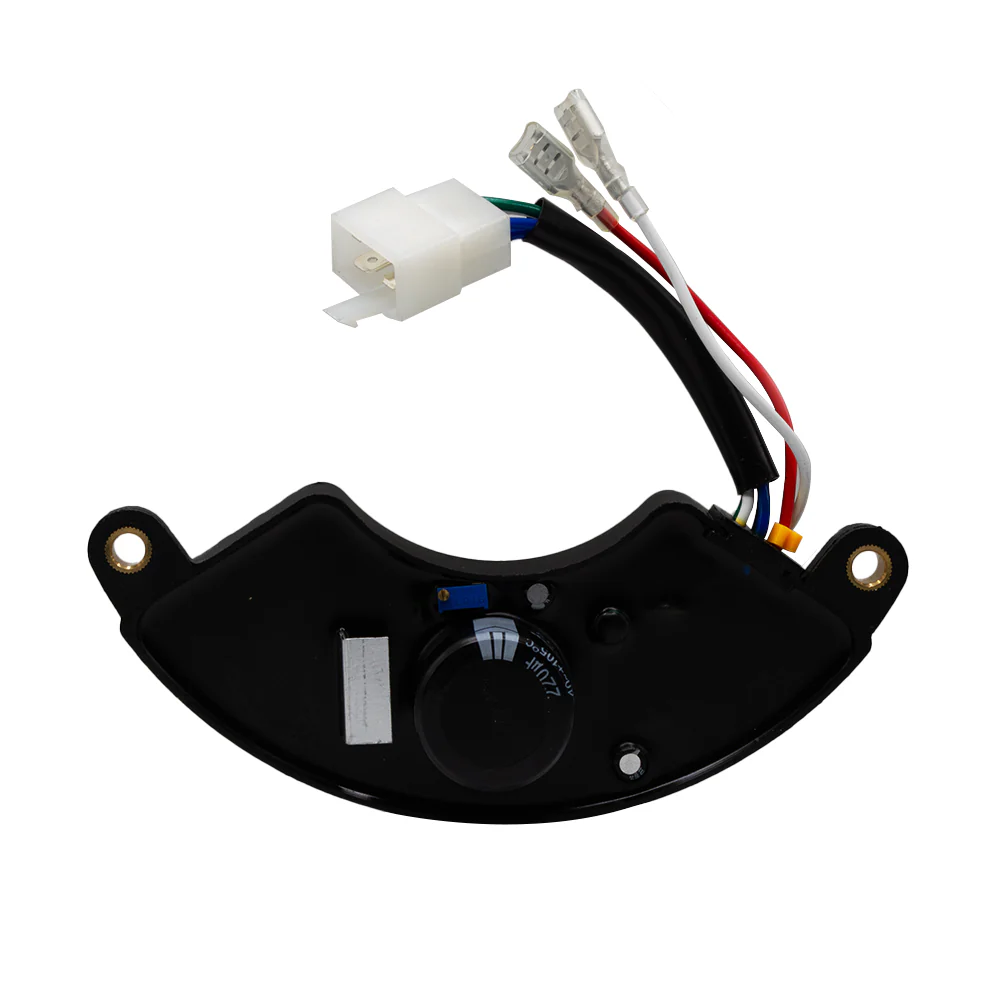

Automatic Voltage Regulator (AVR):
- Part # DMXP-13HXT-AVR
- Website Link: DMXP-13HXT-AVR (Click Here)
- Price: $39.99
- Shipping: $8.95 (Within the contiguous 48 states)

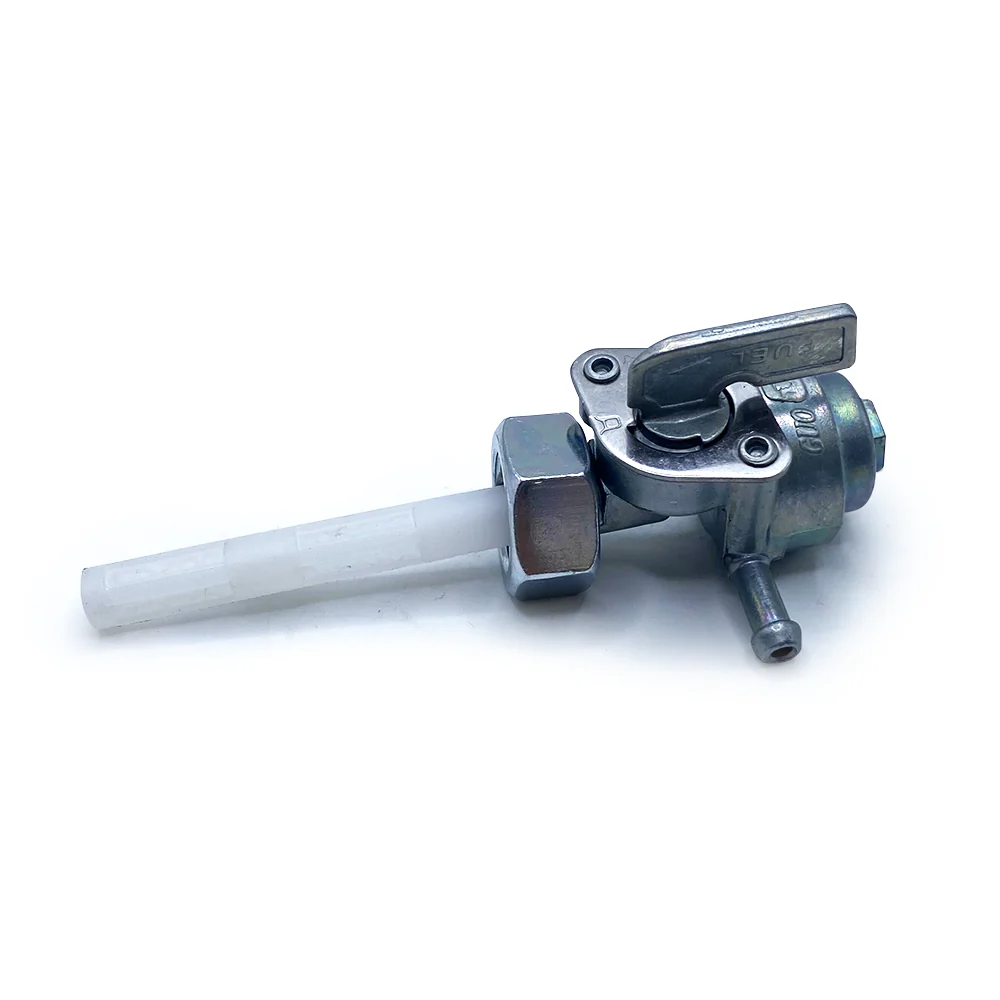

Fuel Valve (Fuel Petcock Valve):
- Part # DMXP-13HXT-FPK
- Website Link: DMXP-13HXT-FPK (Click Here)
- Price: $14.99
- Shipping: $8.95 (Within the contiguous 48 states)

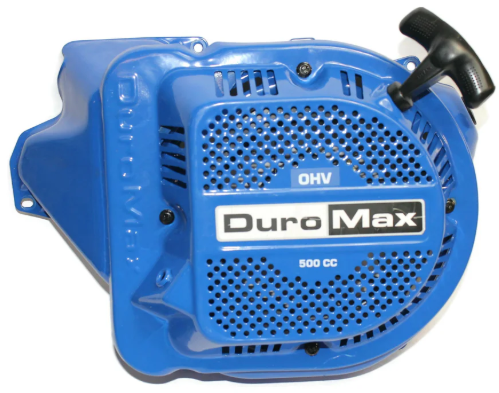

Pull Start Recoil:
- Part # DMXP-13HXT-REC
- Website Link: DMXP-13HXT-REC (Click Here)
- Price: $39.99
- Shipping: $12.95 (Within the contiguous 48 states)

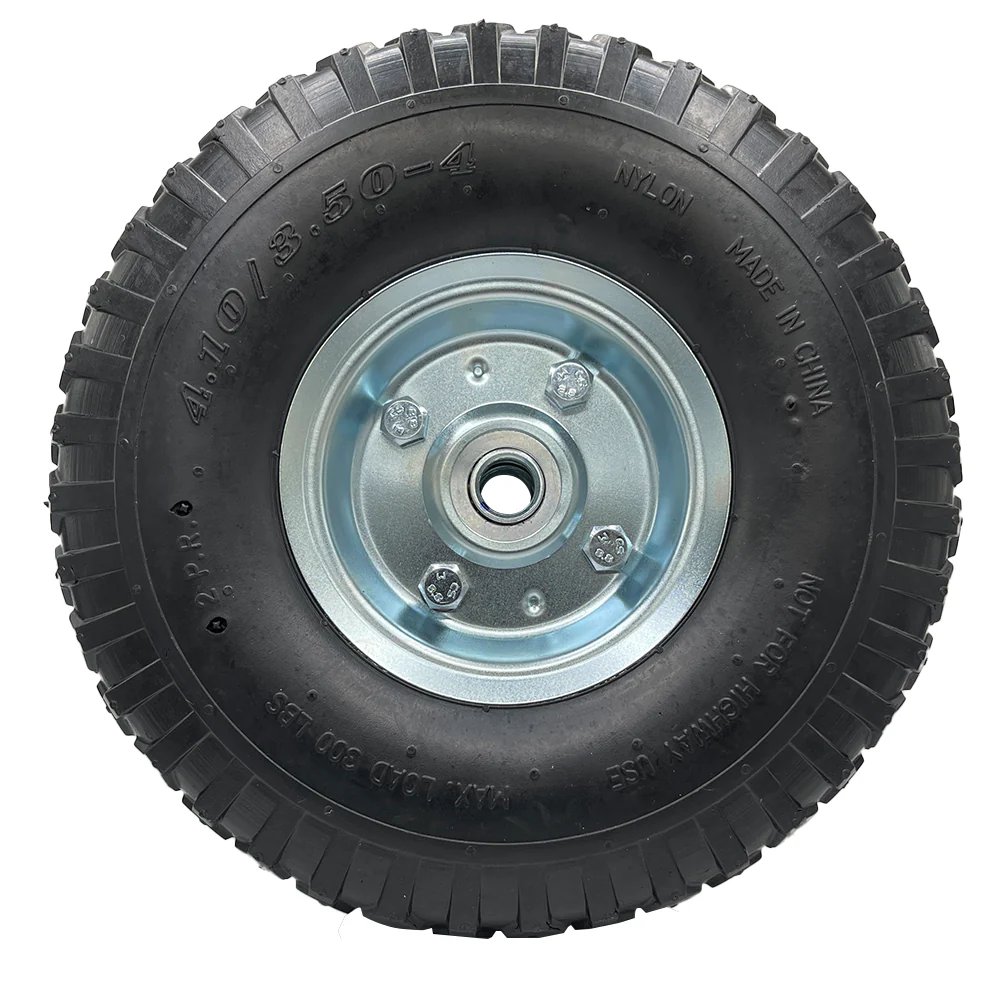

Replacement Wheel W/ Hub:
- Part # DMXP-10HX-WHL
- Website Link: DMXP-10HX-WHL (Click Here)
- Price: $19.99
- Shipping: $8.95 (Within the contiguous 48 states)

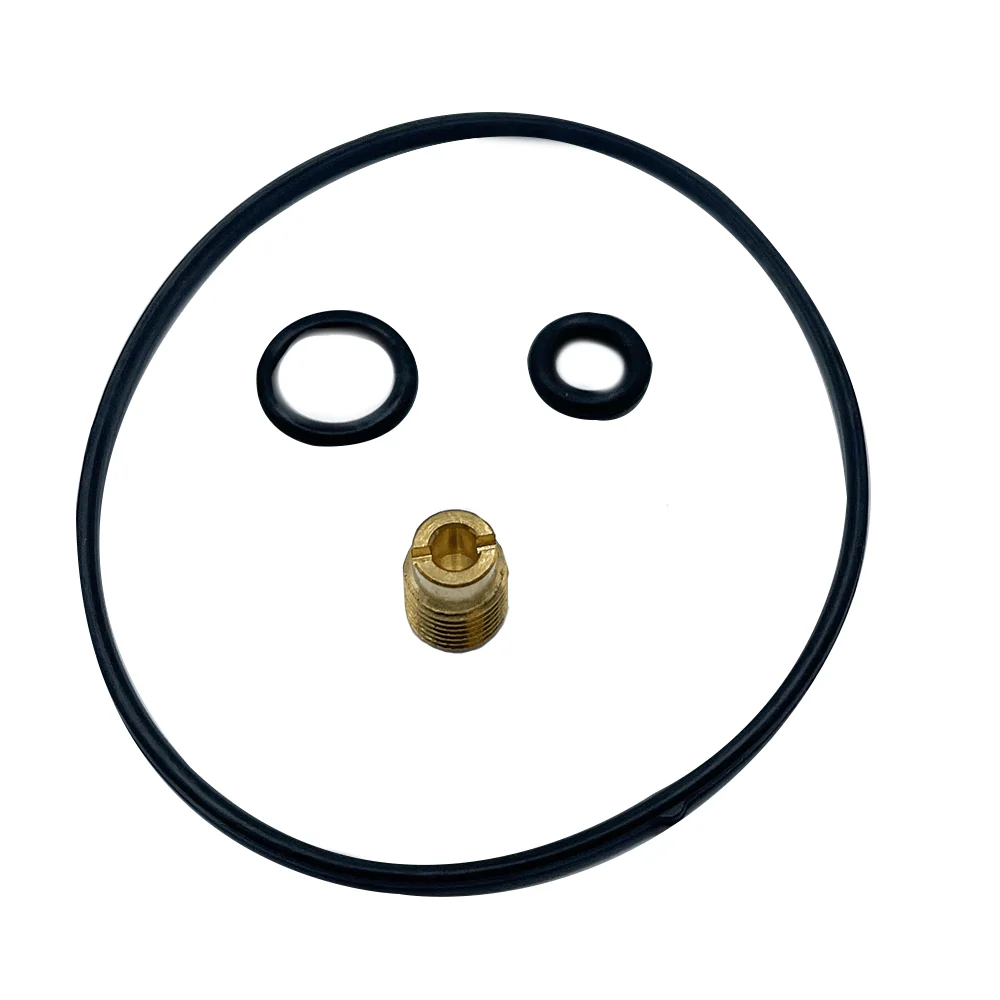

3,000 - 6,000 Ft High Altitude Jet:
- Part # DMXP-10HX-HAJ-1
- Website Link: DMXP-10HX-HAJ-1 (Click Here)
- Price: $9.99
- Shipping: $8.95 (Within the contiguous 48 states)
- For Use At Elevations: 3,000 to 6,000 Feet above Sea Level
6,000 - 8,000 Ft High Altitude Jet:
- Part # DMXP-10HX-HAJ-2
- Website Link: DMXP-10HX-HAJ-2 (Click Here)
- Price: $9.99
- Shipping: $8.95 (Within the contiguous 48 states)
- For Use At Elevations: 6,000 to 8,000 Feet above Sea Level
