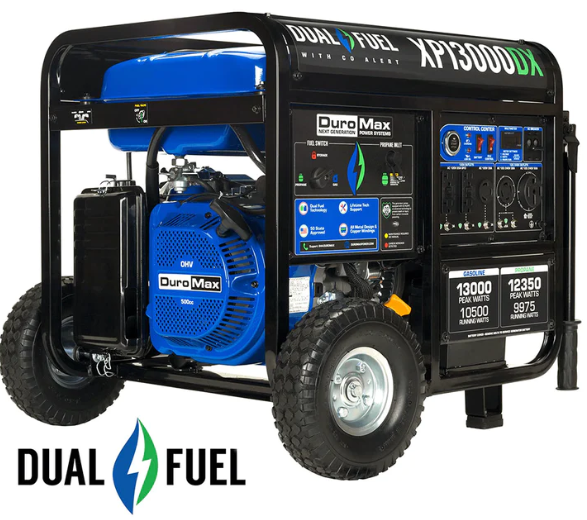

XP13000DX Generator Specifications

NOTE: This model has been discontinued and no longer in production and no longer can be purchased new.

⭐ Key Features & Highlights

  • Dual Fuel Capability – Runs on gasoline or propane for flexible fuel options

  • High Power Output – Delivers up to 13,000 peak watts for demanding applications

  • 100% Copper Windings – Provides stable and reliable power output

  • Electric Start – Easy push-button starting with recoil backup

  • All Metal Construction – Built for durability and long-term performance

  • 5-Year Warranty – Industry-leading coverage

Power Output

Gasoline

  • Peak Wattage: 13,000W

  • Running Wattage: 10,500W

  • Running Amps (120V): 87.5A

  • Running Amps (240V): 43.75A

  • Runtime @ 25% Load: 17 hours

  • Runtime @ 50% Load: 8.5 hours

Propane

  • Peak Wattage: 12,350W

  • Running Wattage: 9,975W

  • Running Amps (120V): 83.13A

  • Running Amps (240V): 41.56A

  • Runtime @ 25% Load: 13 hours

  • Runtime @ 50% Load: 6.5 hours

Engine & Emissions

  • Engine Manufacturer: DuroMax Power Equipment

  • Engine Type: 4-Stroke

  • Valve Type: OHV

  • Cooling Type: Forced Air

  • Engine Size: 500cc

  • Engine Speed: 3600 RPM

Starting & Operation

  • Starting Type: Push Button

  • Electric Start: Yes

  • Recoil Start: Yes

  • Idle Control: No Load Low Idle

  • Fuel System: Carburetor

  • Fuel Types: Gasoline & Propane

Oil & Maintenance

  • Oil Type: 10W-30

  • Oil Types Supported: Conventional, Blended, Synthetic

  • Oil Capacity: 40.5 oz

  • Oil Cooling: Splash

  • Low Oil Shutdown: Yes

Safety & Compliance

  • CO Sensor Shutdown: Yes

  • EPA Certified: Yes

  • California-State Compliant: No

Generator Features

  • Voltage: 120 / 240V

  • Frequency: 60 Hz

  • GFCI Outlets: Yes

  • Automatic Voltage Regulator: Yes

  • Winding Material: 100% Copper Windings

Control Panel

  • Battery Switch: Yes

  • Volt Meter: Digital

  • Hour Meter: Yes

Outlets

  • 5-20R (120V): 4

  • L5-30R: 1

  • L14-30R: 1

  • 14-50R: 1

Fuel & Tank

  • Fuel Tank Capacity (Gasoline): 8.3 gallons

  • Fuel Gauge: Yes

  • Suggested Propane Tank: 40 lb minimum

  • Propane Hose & Regulator: Included

Battery

  • Battery Type: 12V SLA

  • Battery Included: Yes

Build & Dimensions

  • Product Dimensions: 30" L × 29" W × 26" H

  • Dry Weight: 240 lbs

  • Total Weight: 246 lbs

  • Construction: All-metal

Noise Level

  • Noise Level: 74 dB

Applications / Best Use Cases

The XP13000DX is designed for high-demand power needs and near whole-home backup capability:

✅ Home Backup (Expanded Coverage)

  • Refrigerator & freezer

  • Lights and outlets

  • Microwave

  • Washer/dryer (gas dryer recommended)

  • Sump pump

  • Well pump

✅ HVAC Support

  • Window AC units

  • Central AC systems (with soft start recommended)

✅ Jobsite Use

  • Heavy-duty power tools

  • Air compressors

  • Multiple tools running simultaneously

✅ Emergency Preparedness

  • Reliable backup for extended outages

  • High capacity for critical home systems

What Can This Generator Run? (Quick Guidance)

With 10,500 running watts, this generator can typically power:

✔ Core Home Essentials

  • Refrigerator + freezer

  • Lights and outlets

  • Microwave

  • TV and internet

✔ Larger Appliances

  • Sump pump

  • Well pump

  • Washer/dryer (gas dryer preferred)

✔ HVAC Systems

  • Window AC units

  • Central AC (with soft start recommended)

✔ Jobsite Equipment

  • Table saws

  • Air compressors

  • Heavy-duty equipment

⚠ Important Power Usage Disclaimer

The appliance examples listed above are general estimates only and may vary depending on the specific make, model, and starting wattage requirements of each device.

To ensure proper generator sizing and compatibility with your home or equipment, we strongly recommend consulting a licensed electrician to perform a power usage evaluation.

Additional Features

  • RV Ready: Yes

  • Home Backup Ready: Yes

  • Wheel & Handle Kit: Included

  • Wheel Type: Metal Hub

  • Wheel Diameter: 10"

  • Cylinder Sleeve: Cast Iron

  • Bearings: Stainless Steel Ball Bearing

Included in the Box

  • XP13000DX Generator

  • Oil Funnel

  • Spark Plug Wrench

  • Tool Set

  • Wheel & Handle Kit

  • Propane Regulator

  • Owner’s Manual

Product Info

  • Part Number: XP13000DX

  • UPC: 811640016647

  • Warranty: 5-Year
