XP13000HX - SpecificationsUpdated a month ago

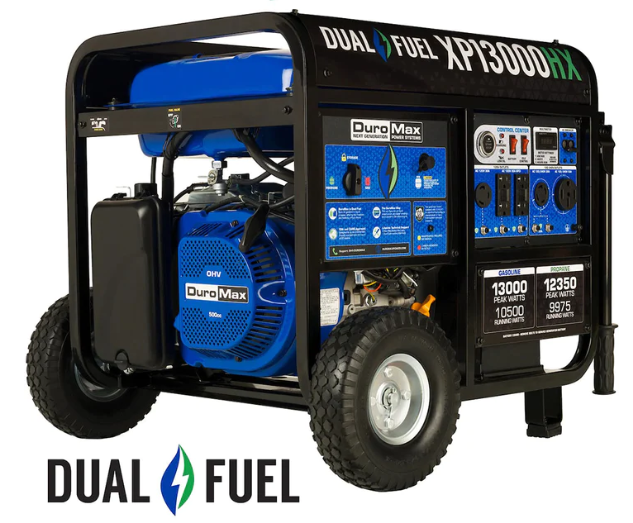

XP13000HX Generator Specifications

⭐ Key Features & Highlights

  • Dual Fuel Capability – Runs on gasoline or propane for flexible fuel options

  • High Power Output – Delivers up to 13,000 peak watts for home backup and jobsite use

  • 100% Copper Windings – Provides stable, reliable power output.

  • All Metal Construction – Built for durability and long-term performance

  • 5-Year Warranty – Backed by industry-leading coverage

Power Output

Gasoline

  • Peak Wattage: 13,000W

  • Running Wattage: 10,500W

  • Running Amps (120V): 87.5A

  • Running Amps (240V): 43.75A

  • Runtime @ 25% Load: 17 hours

  • Runtime @ 50% Load: 8.5 hours

Propane

  • Peak Wattage: 12,500W

  • Running Wattage: 10,000W

  • Running Amps (120V): 83.13A

  • Running Amps (240V): 41.56A

  • Runtime @ 25% Load: 13 hours

  • Runtime @ 50% Load: 6.5 hours

Engine & Emissions

  • Engine Manufacturer: DuroMax Power Equipment

  • Engine Type: 4-Stroke

  • Valve Type: OHV

  • Cooling Type: Forced Air

  • Engine Size: 500cc

  • Engine Speed: 3600 RPM

Starting & Operation

  • Starting Type: Push Button

  • Electric Start: Yes

  • Recoil Start: Yes

  • Remote Start: No

  • Idle Control: Yes

  • Fuel System: Carburetor

  • Fuel Types: Gasoline & Propane

Oil & Maintenance

  • Oil Type: 10W-30

  • Oil Types Supported: Conventional, Blended, Synthetic

  • Oil Capacity: 40.5 oz

  • Oil Cooling: Splash

  • Low Oil Shutdown: Yes

Safety & Compliance

  • CO Sensor Shutdown: Yes

  • EPA Certified: Yes

  • California-State Compliant: No

Generator Features

  • Voltage: 120 / 240V

  • Frequency: 60 Hz

  • Total Harmonic Distortion (THD): <5%

  • GFCI Outlets: Yes

  • Automatic Voltage Regulator: Yes

  • Winding Material: 100% Copper Windings

Control Panel

  • Battery Switch: Yes

  • Volt Meter: Digital

  • Hour Meter: Yes

Outlets

  • 5-20R (120V): 4

  • L5-30R: 1

  • L14-30R: 1

  • 14-50R: 1

Fuel & Tank

  • Fuel Tank Capacity (Gasoline): 8.3 gallons

  • Fuel Gauge: Yes

  • Suggested Propane Tank: 40 lb minimum

  • Propane Hose & Regulator: Included (4 ft)

Battery

  • Battery Type: 12V SLA

  • Battery Included: Yes

Build & Dimensions

  • Product Dimensions: 30" L × 29" W × 26" H

  • Dry Weight: 240 lbs

  • Total Weight: 246 lbs

  • Construction: All-metal

Noise Level

  • Noise Level: 74 dB

Applications / Best Use Cases

The XP13000HX is designed for larger home backup needs and high-demand applications:

✅ Whole Home Backup

  • Central AC systems (3–5 ton typical)

  • Refrigerator & freezer

  • Lights and outlets

  • Well pumps & sump pumps

  • Multiple major appliances

✅ HVAC & High Surge Loads

  • Central air conditioning systems (soft start recommended)

  • Multiple cooling units

✅ Jobsite & Contractor Use

  • Heavy-duty tools

  • Air compressors

  • Multiple high-load tools simultaneously

✅ Emergency Preparedness

  • Reliable backup during extended outages

  • Strong runtime with dual fuel flexibility

What Can This Generator Run? (Quick Guidance)

With 10,500 running watts, this generator can typically power:

✔ Core Home Essentials

  • Refrigerator + freezer

  • Lights and outlets

  • Microwave

  • Washer/dryer (gas dryer preferred)

✔ Larger Appliances

  • Sump pump

  • Well pump

  • Electric water heater (limited use)

  • Electric range (limited use)

✔ HVAC Systems

  • Central AC (3–5 ton typical, soft start recommended)

  • Window AC units

✔ Jobsite Equipment

  • Table saws

  • Air compressors

  • Heavy-duty tools

⚠ Important Power Usage Disclaimer

The appliance examples listed above are general estimates only and may vary depending on the specific make, model, and starting wattage requirements of each device.

To ensure proper generator sizing and compatibility with your home or equipment, we strongly recommend consulting a licensed electrician to perform a power usage evaluation.

Additional Features

  • RV Ready: Yes

  • Home Backup Ready: Yes

  • Wheel & Handle Kit: Included

  • Wheel Type: Metal Hub

  • Wheel Diameter: 10"

  • Cylinder Sleeve: Cast Iron

  • Bearings: Stainless Steel Ball Bearing

Included in the Box

  • XP13000HX Generator

  • Propane Regulator

  • Oil Funnel

  • Spark Plug Wrench

  • Tool Set

  • Wheel & Handle Kit

  • Owner’s Manual

Product Info

  • Part Number: XP13000HX

  • UPC: 811640016234

  • Warranty: 5-Year
