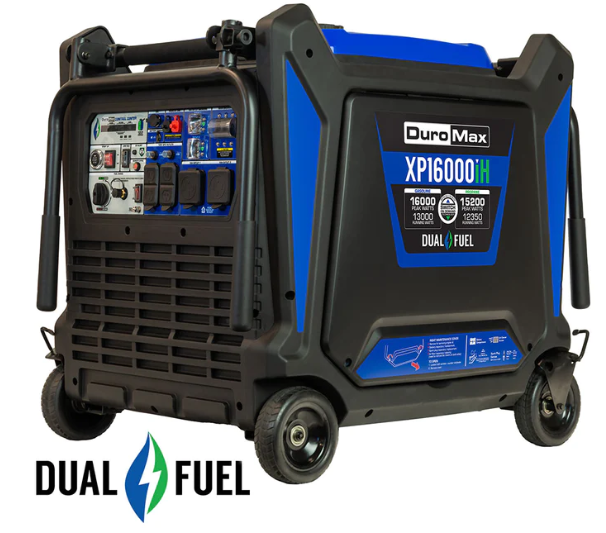

XP16000iH Generator Specifications

Power Output

Gasoline

• Peak Wattage: 16,000W

• Running Wattage: 13,000W

• Running Amps (120V): 108.33A

• Running Amps (240V): 54.17A

• Runtime @ 25% Load: 18.2 hours

• Runtime @ 50% Load: 10.5 hours

Propane

• Peak Wattage: 15,200W

• Running Wattage: 12,350W

• Running Amps (120V): 102.92A

• Running Amps (240V): 51.46A

Runtime @ 25% Load:

• 40 lb tank: 11 hours

• 60 lb tank: 16.5 hours

• 100 lb tank: 27.75 hours

Runtime @ 50% Load:

• 40 lb tank: 6 hours

• 60 lb tank: 9.4 hours

• 100 lb tank: 14.5 hours

Engine & Emissions

• Engine Manufacturer: DuroMax Power Equipment

• Engine Type: 4-Stroke

• Valve Type: OHV

• Cooling Type: Forced Air

• Engine Size: 744cc

• Engine Speed: Variable (load dependent)

Starting & Operation

• Starting Type: Push Button

• Electric Start: Yes

• Recoil Start: No

• Remote Start: Yes

• Idle Control: Demand-Based Variable Idle

• Fuel Types: Gasoline & Propane

• Fuel System: Carburetor

Oil & Maintenance

• Oil Type: 10W-30

• Oil Types Supported: Conventional, Blended, Synthetic

• Oil Capacity: 50.7 oz

• Oil Cooling: Pressure & Splash

• Low Oil Shutdown: Yes

Safety & Compliance

• CO Sensor Shutdown: Yes

• EPA Certified: Yes

• CARB Certified: No

• California Sales: Not available for sale in California

Generator Features

• Voltage: 120 / 240V

• Frequency: 60 Hz

• THD: <3%

• GFCI Outlets: Yes

• Automatic Voltage Regulator: Yes

• Winding Material: 100% Copper

• All Metal Construction: Yes

Control Panel

• Battery Switch: Yes

• Battery Tender Port: Yes

• Battery Tender Included: Yes

• Volt Meter: Digital

• Hour Meter: Yes

Outlets

• 5-20R (120V): 4

• 14-50R: 2

Fuel & Tank

• Fuel Tank Capacity (Gasoline): 10.5 gallons

• Fuel Gauge: Yes

• Suggested Propane Tank: 60 lb minimum

• Propane Hose & Regulator: Included (4 ft)

Battery

• Battery Type: 12V AGM

• Battery Included: Yes

Build & Dimensions

• Product Dimensions: 38.3" L × 30.8" W × 34.4" H

• Package Dimensions: 42" L × 34" W × 36" H

• Dry Weight: 368 lbs

Noise Level

• Noise @ 25% Load: 66.9 dB

Applications / Best Use Cases

The XP16000iH is a high-capacity inverter generator built for maximum output and heavy-duty applications:

✅ Whole Home Backup Power

• Large homes (multiple circuits)

• HVAC systems

• Well pumps, sump pumps

• Kitchen appliances and heavy loads

✅ Large RV & Mobile Power

• Multiple RV air conditioners

• Full RV system operation

• High-demand RV setups

✅ Jobsite / Industrial Use

• Large power tools

• Air compressors

• Welders (depending on specs)

• Multiple tool operation simultaneously

✅ Emergency & Disaster Preparedness

• Long-duration outages

• Critical infrastructure backup

• High-demand emergency power

✅ Commercial / Event Use

• Food trucks

• Outdoor events

• Mobile businesses

• Large equipment setups

What Can This Generator Run? (Quick Guidance)

The XP16000iH (13,000 running watts) can typically power:

✔ Whole Home Essentials

• Multiple refrigerators & freezers

• Full lighting circuits

• Kitchen appliances

• Washer & dryer (non-electric heating preferred)

✔ High Demand Appliances

• Well pump

• Sump pump

• Electric water heater (depending on size)

• Multiple window AC units

✔ HVAC Systems

• Central AC units (approx. 4–5+ ton) with soft start installed

• Furnace systems

✔ RV & Mobile Power

• Multiple RV AC units

• Full RV power usage simultaneously

✔ Jobsite Equipment

• Large compressors

• Table saws

• High draw tools running together

⚠ Important Power Usage Disclaimer

The appliance examples listed above are general estimates only and may vary depending on the specific make, model, and starting wattage requirements of each device.

To ensure proper generator sizing and compatibility with your home or equipment, we strongly recommend consulting a licensed electrician to perform a power usage evaluation. This will help determine the exact wattage requirements needed for your specific setup.

Additional Features

• RV Ready: Yes

• Home Backup Ready: Yes

• Wheel & Handle Kit: Included

• Wheel Type: Metal Hub

• Wheel Diameter: 7"

• Cylinder Sleeve: Cast Iron

• Bearing Type: 6003 Bearing

Included in the Box

• XP16000iH Generator

• Propane Regulator

• Oil Funnel

• Spark Plug Wrench

• Tool Set

• Remote Control

• Battery Tender

• Owner’s Manual

Product Info

• Part Number: XP16000iH

• UPC: 811640016883

• Warranty: 5-Year
