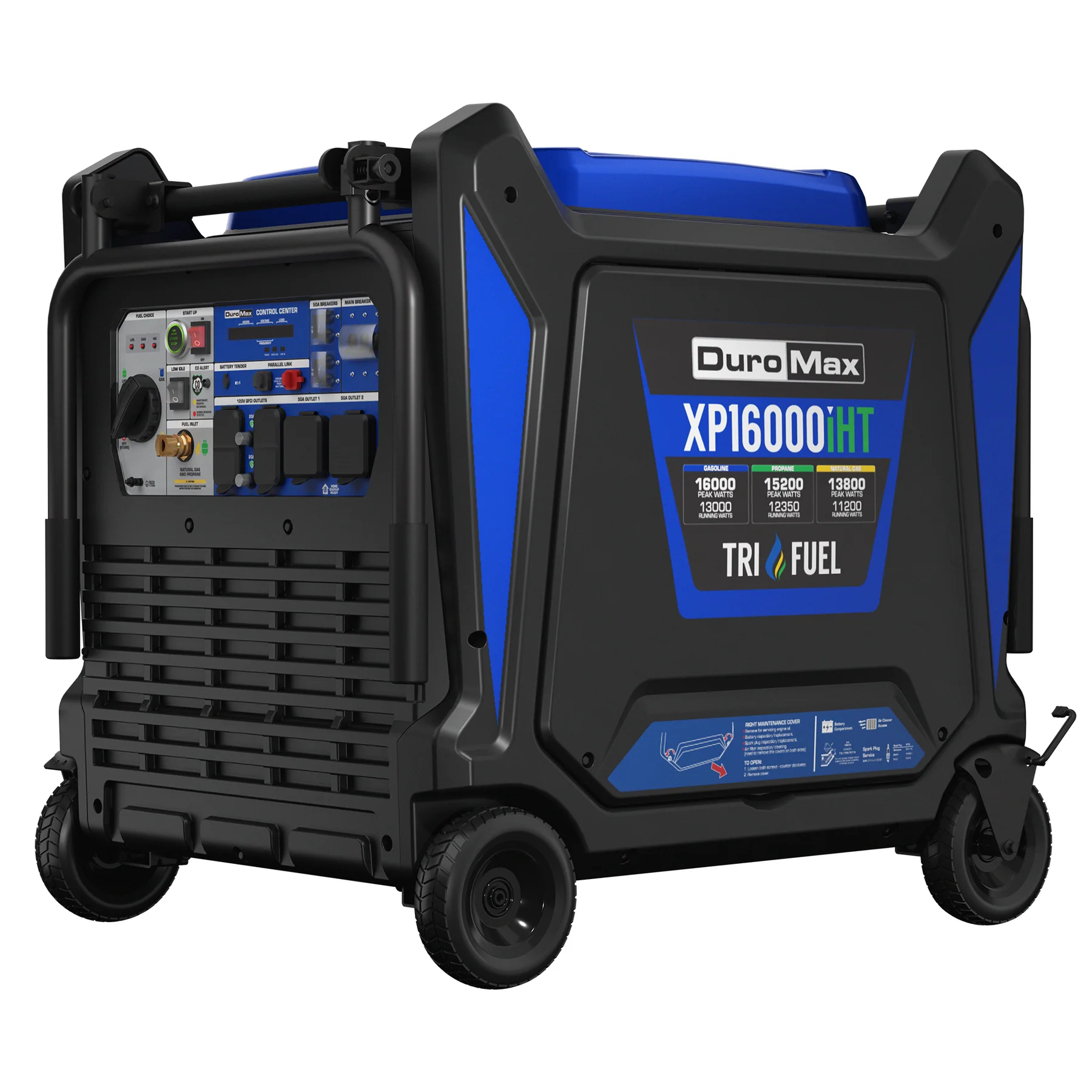

XP16000iHT Generator Specifications

Power Output

Gasoline

• Peak Wattage: 16,000W

• Running Wattage: 13,000W

• Running Amps (120V): 108.33A

• Running Amps (240V): 54.17A

• Runtime @ 25% Load: 18.2 hours

• Runtime @ 50% Load: 10.5 hours

Propane

• Peak Wattage: 15,200W

• Running Wattage: 12,350W

• Running Amps (120V): 102.92A

• Running Amps (240V): 51.46A

Runtime @ 25% Load:

• 40 lb tank: 11 hours

• 60 lb tank: 16.5 hours

• 100 lb tank: 27.75 hours

Runtime @ 50% Load:

• 40 lb tank: 6 hours

• 60 lb tank: 9.4 hours

• 100 lb tank: 14.5 hours

Natural Gas

• Peak Wattage: 13,800W

• Running Wattage: 11,200W

• Running Amps (120V): 93.33A

• Running Amps (240V): 46.66A

• Required Fuel Pressure: 6.0 – 9.0 in. water column

• BTU Requirement @ Full Load: 295,000 BTU

Engine & Emissions

• Engine Manufacturer: DuroMax Power Equipment

• Engine Type: 4-Stroke

• Valve Type: OHV

• Cooling Type: Forced Air

• Engine Size: 744cc

• Engine Speed: Variable (load dependent)

Starting & Operation

• Starting Type: Push Button

• Electric Start: Yes

• Recoil Start: No

• Remote Start: Yes

• Idle Control: Demand-Based Variable Idle

• Fuel Types: Gasoline, Propane, Natural Gas

• Fuel System: Carburetor

Oil & Maintenance

• Oil Type: 10W-30

• Oil Types Supported: Conventional, Blended, Synthetic

• Oil Capacity: 50.7 oz

• Oil Cooling: Pressure & Splash

• Low Oil Shutdown: Yes

Safety & Compliance

• CO Sensor Shutdown: Yes

• EPA Certified: Yes

• CARB Certified: No

• 50-State Compliant: No

Generator Features

• Voltage: 120 / 240V

• Frequency: 60 Hz

• THD: <3%

• GFCI Outlets: Yes

• Automatic Voltage Regulator: Yes

• Winding Material: 100% Copper

• All Metal Construction: Yes

Control Panel

• Battery Switch: Yes

• Battery Tender Port: Yes

• Battery Tender Included: Yes

• Volt Meter: Digital

• Hour Meter: Yes

Outlets

• 5-20R (120V): 4

• 14-50R: 2

Fuel & Tank

• Fuel Tank Capacity (Gasoline): 10.5 gallons

• Fuel Gauge: Yes

• Suggested Propane Tank: 60 lb minimum

• Propane Hose & Regulator: Included (4 ft)

• Natural Gas Hose: Included (15 ft, 3/4")

Battery

• Battery Type: 12V AGM

• Battery Included: Yes

Build & Dimensions

• Product Dimensions: 38.3" L × 30.8" W × 34.4" H

• Package Dimensions: 40" L × 32" W × 35.5" H

• Dry Weight: 368 lbs

Noise Level

• Noise @ 25% Load: 66.9 dB

Applications / Best Use Cases

The XP16000iHT is a high-capacity tri-fuel inverter generator designed for maximum flexibility and power:

✅ Whole Home Backup Power

• Large homes with multiple circuits

• HVAC systems

• Well pumps and sump pumps

• Kitchen and essential appliances

✅ Tri-Fuel Flexibility Applications

• Natural gas home connection

• Propane backup fuel supply

• Gasoline for portable use

✅ Jobsite / Industrial Use

• Heavy-duty tools

• Air compressors

• Multi-tool operation

✅ Emergency Preparedness

• Long-term outages

• Fuel flexibility for reliability

• Critical system backup

✅ Commercial / Mobile Use

• Food trucks

• Outdoor events

• Business continuity power

What Can This Generator Run? (Quick Guidance)

The XP16000iHT (13,000 running watts gasoline / 11,200 NG) can typically power:

✔ Whole Home Essentials

• Multiple refrigerators & freezers

• Full lighting circuits

• Kitchen appliances

• Washer & dryer (non-electric heat preferred)

✔ High Demand Appliances

• Well pumps

• Sump pumps

• Electric water heaters (depending on size)

• Multiple AC units

✔ HVAC Systems

• Central AC systems (approx. 4–5+ ton) with soft start installed

• Furnace systems

✔ Natural Gas Operation

• Whole-home backup using natural gas supply

• Continuous operation with proper fuel pressure

✔ Jobsite Equipment

• Large compressors

• Table saws

• High draw tools simultaneously

⚠ Important Power Usage Disclaimer

The appliance examples listed above are general estimates only and may vary depending on the specific make, model, and starting wattage requirements of each device.

To ensure proper generator sizing and compatibility with your home or equipment, we strongly recommend consulting a licensed electrician to perform a power usage evaluation. This will help determine the exact wattage requirements needed for your specific setup.

Additional Features

• RV Ready: Yes

• Home Backup Ready: Yes

• Wheel Type: Metal Hub

• Cylinder Sleeve: Cast Iron

• Bearing Type: 6003 Bearing

Included in the Box

• XP16000iHT Generator

• Propane Regulator

• 15 ft Natural Gas Hose (3/4")

• Oil Funnel

• Spark Plug Wrench

• Tool Set

• Remote Control

• Battery Tender

• Owner’s Manual

Product Info

• Part Number: XP16000iHT

• UPC: 811640017040

• Warranty: 5-Year
