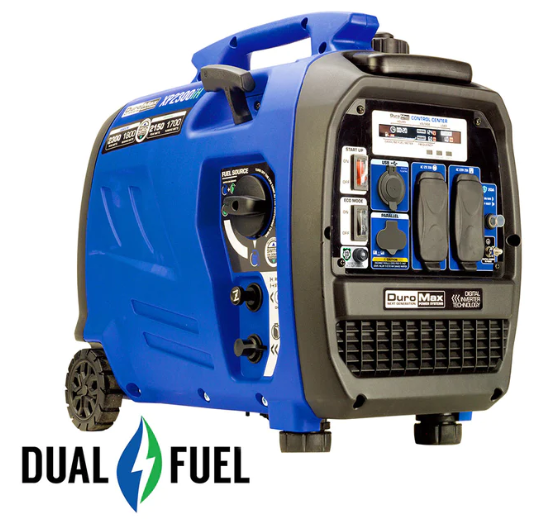

XP2300iH Generator Specifications

Power Output

Gasoline

• Peak Wattage: 2,300W

• Running Wattage: 1,800W

• Running Amps (120V): 15A

• Runtime @ 25% Load: 13 hours

• Runtime @ 50% Load: 7 hours

Propane

• Peak Wattage: 2,150W

• Running Wattage: 1,700W

• Running Amps (120V): 14.16A

• Runtime @ 25% Load: 38 hours

• Runtime @ 50% Load: 18 hours

Engine & Emissions

• Engine Manufacturer: DuroMax Power Equipment

• Engine Type: 4-Stroke

• Valve Type: OHV

• Cooling Type: Forced Air

• Engine Size: 80cc

• Engine Speed: 3600–5300 RPM

Starting & Operation

• Starting Type: Recoil Start

• Recoil Start: Yes

• Remote Start: Yes

• Idle Control: Demand-Based Variable Idle

• Fuel Types: Gasoline & Propane

• Fuel System: Carburetor

Oil & Maintenance

• Oil Type: 10W-30

• Oil Types Supported: Conventional, Blended, Synthetic

• Oil Capacity: 13 oz

• Oil Cooling: Splash

• Low Oil Shutdown: Yes

Safety & Compliance

• CO Sensor Shutdown: Yes

• EPA Certified: Yes

• CARB Certified: No

• California Sales: Not available for sale in California

Generator Features

• Voltage: 120V

• Frequency: 60 Hz

• THD: <3%

• Automatic Voltage Regulator: Yes

• Winding Material: 100% Copper

Control Panel

• Volt Meter: Digital

• Hour Meter: Yes

Outlets

• 5-20R (120V): 2

• L5-30R: 1

• USB-A: 1

• USB-C: 1

Fuel & Tank

• Fuel Tank Capacity (Gasoline): 1.1 gallons

• Fuel Gauge: Yes

• Suggested Propane Tank: 20 lb minimum

• Propane Hose & Regulator: Included (4 ft)

Build & Dimensions

• Product Dimensions: 22" L × 14" W × 20" H

• Dry Weight: 50.6 lbs

• Total Weight: 53 lbs

Noise Level

• Noise Level: 52 dB

Applications / Best Use Cases

The XP2300iH is a lightweight, ultra-quiet inverter generator, ideal for portability and low-power needs:

✅ Camping & Recreation

• Quiet campground use

• Charging devices

• Small appliances

✅ RV Use

• RV essentials

• Lights, outlets, small appliances

• Parallel capability for increased power

✅ Tailgating & Outdoor Events

• TVs and speakers

• Portable cooking appliances

• Lighting

✅ Light Home Backup

• Lights and electronics

• Wi-Fi/router

• Phone and laptop charging

What Can This Generator Run? (Quick Guidance)

With 1,800 running watts, this generator can typically power:

✔ Small Electronics

• Phones, tablets, laptops

• TVs and streaming devices

• Routers/modems

✔ Light Appliances

• Mini fridge

• Coffee maker

• Fans

• Lights

✔ RV Essentials

• Lights and outlets

• Small kitchen appliances

• Battery charging systems

⚠ Limitations

• Not suitable for central AC units

• Not suitable for large appliances (water heaters, dryers)

• Limited for high-start surge devices

⚠ Important Power Usage Disclaimer

The appliance examples listed above are general estimates only and may vary depending on the specific make, model, and starting wattage requirements of each device.

To ensure proper generator sizing and compatibility with your home or equipment, we strongly recommend consulting a licensed electrician to perform a power usage evaluation. This will help determine the exact wattage requirements needed for your specific setup.

Additional Features

• RV Ready: Yes

• Wheel & Handle Kit: Included

• Wheel Type: Plastic

• Wheel Diameter: 4.5"

• Cylinder Sleeve: Cast Iron

• Bearings: Stainless Steel Ball Bearing

Included in the Box

• XP2300iH Generator

• 4 ft Propane Hose & Regulator

• Oil Funnel

• Spark Plug Wrench

• Parallel Cable

• Owner’s Manual

Product Info

• Part Number: XP2300iH

• UPC: 811640016371

• Warranty: 3-Year
