XP5500DX - SpecificationsUpdated a month ago

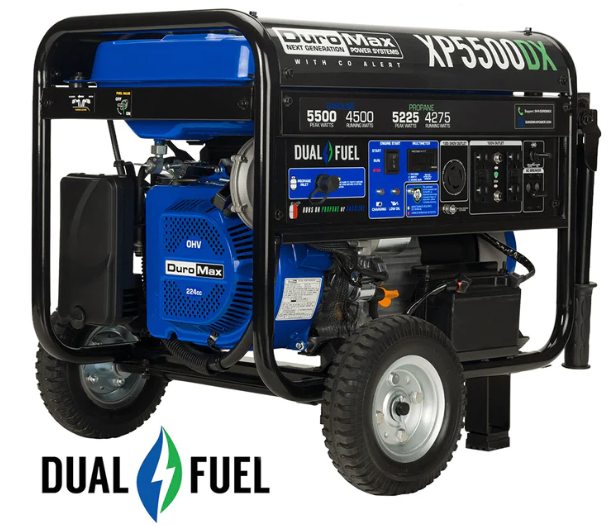

XP5500DX Generator Specifications
NOTE: This model has been discontinued and no longer in production and no longer can be purchased new.
⭐ Key Features & Highlights
Dual Fuel Capability – Runs on gasoline or propane for flexible fuel options
Reliable Power Output – Delivers up to 5,500 peak watts for home backup and jobsite use
100% Copper Windings – Provides stable and dependable power output
Electric Start – Easy operation with recoil backup
All Metal Construction – Built for durability and long-term performance
5-Year Warranty – Industry-leading coverage
Power Output
Gasoline
Peak Wattage: 5,500W
Running Wattage: 4,500W
Running Amps (120V): 37.50A
Running Amps (240V): 18.75A
Runtime @ 25% Load: 19 hours
Runtime @ 50% Load: 9 hours
Propane
Peak Wattage: 5,225W
Running Wattage: 4,275W
Running Amps (120V): 35.63A
Running Amps (240V): 17.81A
Runtime @ 25% Load: 15 hours
Runtime @ 50% Load: 8 hours
Engine & Emissions
Engine Manufacturer: DuroMax Power Equipment
Engine Type: 4-Stroke
Valve Type: OHV
Cooling Type: Forced Air
Engine Size: 224cc
Engine Speed: 3600 RPM
Starting & Operation
Starting Type: Rocker Switch
Electric Start: Yes
Recoil Start: Yes
Fuel System: Carburetor
Fuel Types: Gasoline & Propane
Oil & Maintenance
Oil Type: 10W-30
Oil Types Supported: Conventional, Blended, Synthetic
Oil Capacity: 20.3 oz
Oil Cooling: Splash
Low Oil Shutdown: Yes
Safety & Compliance
CO Sensor Shutdown: Yes
EPA Certified: Yes
California-State Compliant: No
Generator Features
Voltage: 120 / 240V
Frequency: 60 Hz
GFCI Outlets: Yes
Automatic Voltage Regulator: Yes
Winding Material: 100% Copper Windings
Control Panel
Volt Meter: Digital
Hour Meter: Yes
Outlets
5-20R (120V): 4
L14-30R (120/240V): 1
Fuel & Tank
Fuel Tank Capacity (Gasoline): 4 gallons
Fuel Gauge: Yes
Suggested Propane Tank: 20 lb minimum
Propane Hose & Regulator: Included
Battery
Battery Type: 12V SLA
Battery Included: Yes
Build & Dimensions
Product Dimensions: 25" L × 23" W × 22" H
Dry Weight: 128 lbs
Total Weight: 135 lbs
Construction: All-metal
Noise Level
Noise Level: 69 dB
Applications / Best Use Cases
The XP5500DX is ideal for medium-duty power needs and versatile everyday use:
✅ Home Backup (Essential + Expanded Circuits)
Refrigerator & freezer
Lights and outlets
Microwave
Sump pump
TV and internet
✅ RV & Camping
RV power (multiple appliances)
Lights and outlets
Small AC units
✅ Jobsite Use
Power tools
Small-to-mid air compressors
Construction equipment
✅ Recreational Use
Tailgating
Outdoor events
Off-grid setups
What Can This Generator Run? (Quick Guidance)
With 4,500 running watts, this generator can typically power:
✔ Core Essentials
Refrigerator + freezer
Lights and outlets
TV and internet
✔ Appliances
Microwave
Coffee maker
Sump pump
✔ Equipment
Power tools
Small air compressor
✔ HVAC (Limited)
Window AC unit
Portable AC
⚠ Important Power Usage Disclaimer
The appliance examples listed above are general estimates only and may vary depending on the specific make, model, and starting wattage requirements of each device.
To ensure proper generator sizing and compatibility with your home or equipment, we strongly recommend consulting a licensed electrician to perform a power usage evaluation.
Additional Features
RV Ready: Yes
Home Backup Ready: Yes
Wheel & Handle Kit: Included
Wheel Type: Metal Hub
Wheel Diameter: 8"
Cylinder Sleeve: Cast Iron
Bearings: Stainless Steel Ball Bearing
Included in the Box
XP5500DX Generator
Oil Funnel
Spark Plug Wrench
Tool Set
Wheel & Handle Kit
Propane Regulator
Owner’s Manual
Product Info
Part Number: XP5500DX
UPC: 811640016562
Warranty: 5-Year
