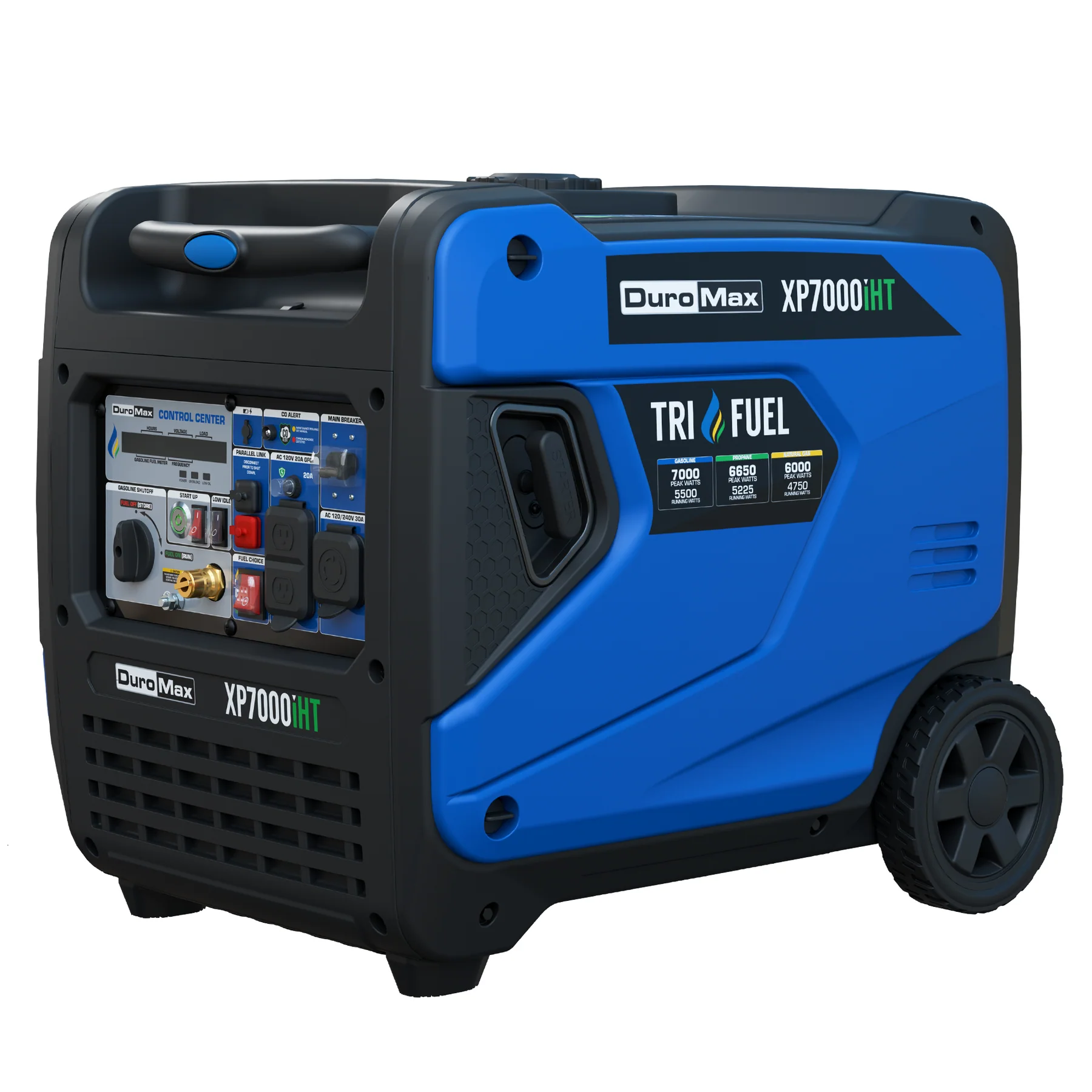

XP7000iHT Generator Specifications

Power Output

Gasoline

• Peak Wattage: 7,000W

• Running Wattage: 5,500W

• Running Amps (120V): 45.83A

• Running Amps (240V): 22.92A

• Runtime @ 25% Load: 16 hours

• Runtime @ 50% Load: 8 hours

Propane

• Peak Wattage: 6,650W

• Running Wattage: 5,225W

• Running Amps (120V): 43.54A

• Running Amps (240V): 21.77A

Runtime @ 25% Load:

• 40 lb tank: 26 hours

• 60 lb tank: 39 hours

• 100 lb tank: 43.33 hours

Runtime @ 50% Load:

• 40 lb tank: 14 hours

• 60 lb tank: 21 hours

• 100 lb tank: 23.33 hours

Natural Gas

• Peak Wattage: 6,000W

• Running Wattage: 4,750W

• Running Amps (120V): 39.58A

• Running Amps (240V): 19.79A

• Required Fuel Pressure: 6.0 – 9.0 in. water column

• BTU Requirement @ Full Load: 121,000 BTU/hr

Engine & Emissions

• Engine Manufacturer: DuroMax Power Equipment

• Engine Type: 4-Stroke

• Valve Type: OHV

• Cooling Type: Forced Air

• Engine Size: 320cc

• Engine Speed: 3600 RPM

Starting & Operation

• Starting Type: Push Button

• Electric Start: Yes

• Recoil Start: Yes

• Remote Start: Yes

• Electronic Choke: Yes

• Idle Control: Demand-Based Variable Idle

• Fuel Types: Gasoline, Propane, Natural Gas

• Fuel System: Carburetor

Oil & Maintenance

• Oil Type: 10W-30

• Oil Types Supported: Conventional, Blended, Synthetic

• Oil Capacity: 23.7 oz

• Oil Cooling: Splash

• Low Oil Shutdown: Yes

Safety & Compliance

• CO Sensor Shutdown: Yes

• EPA Certified: Yes

• CARB Certified: No

Generator Features

• Voltage: 120 / 240V

• Frequency: 60 Hz

• THD: < 3%

• GFCI Outlets: Yes

• Automatic Voltage Regulator: Yes

• Winding Material: 100% Copper

Control Panel

• Battery Switch: Yes

• Volt Meter: Digital

• Hour Meter: Yes

Outlets

• 5-20R (120V): 2

• L14-30R (120/240V): 1

Fuel & Tank

• Fuel Tank Capacity (Gasoline): 3 gallons

• Fuel Gauge: Yes

• Suggested Propane Tank: 20 lb minimum

• Propane Hose & Regulator: Included (4 ft)

• Natural Gas Hose: Included (15 ft, 1/2")

Battery

• Battery Type: 12V SLA

• Battery Included: Yes

Build & Dimensions

• Product Dimensions: 25.1" L × 19.4" W × 21.38" H

• Product Weight: 147 lbs

Noise Level

• Noise @ 25% Load: 62 dB

Applications / Best Use Cases

The XP7000iHT is a mid-size tri-fuel inverter generator offering flexibility and efficiency:

✅ Home Backup Power

• Refrigerator & freezer

• Lights and outlets

• Sump pump

• Essential home circuits

✅ RV & Travel Trailer Use

• RV air conditioner (depending on BTU)

• Microwave and onboard appliances

• 30A RV compatibility

✅ Camping & Recreation

• Quiet campground use

• Electronics and small appliances

• Portable comfort systems

✅ Jobsite Use

• Power tools (drills, saws)

• Battery chargers

• Work lighting

✅ Tri-Fuel Flexibility

• Natural gas home hookup

• Propane for extended runtime

• Gasoline for portability

What Can This Generator Run? (Quick Guidance)

The XP7000iHT (5,500 running watts gasoline / 4,750 NG) can typically power:

✔ Household Essentials

• Refrigerator + Freezer

• Lights and outlets

• Microwave

• Coffee maker

• TVs and electronics

✔ Moderate Appliances

• Sump pump

• Small well pump

• Window AC units

✔ RV Equipment

• RV AC (13,500 BTU typical)

• RV appliances and outlets

⚠ Central AC Note

• May run smaller central AC units (2–3 ton) with a soft start installed

⚠ Important Power Usage Disclaimer

The appliance examples listed above are general estimates only and may vary depending on the specific make, model, and starting wattage requirements of each device.

To ensure proper generator sizing and compatibility with your home or equipment, we strongly recommend consulting a licensed electrician to perform a power usage evaluation. This will help determine the exact wattage requirements needed for your specific setup.

Additional Features

• RV Ready: Yes

• Home Backup Ready: Yes

• Wheel & Handle Kit: Included

• Wheel Diameter: 7"

• Cylinder Sleeve: Boron Cast Iron

• Bearings: Stainless Steel Ball Bearing

Included in the Box

• XP7000iHT Generator

• Propane Regulator

• 15 ft Natural Gas Hose (1/2")

• Oil Funnel

• Spark Plug Wrench

• Remote Control

• Battery Tender

• Owner’s Manual

Product Info

• Part Number: XP7000iHT

• UPC: 811640017071

• Warranty: 5-Year
