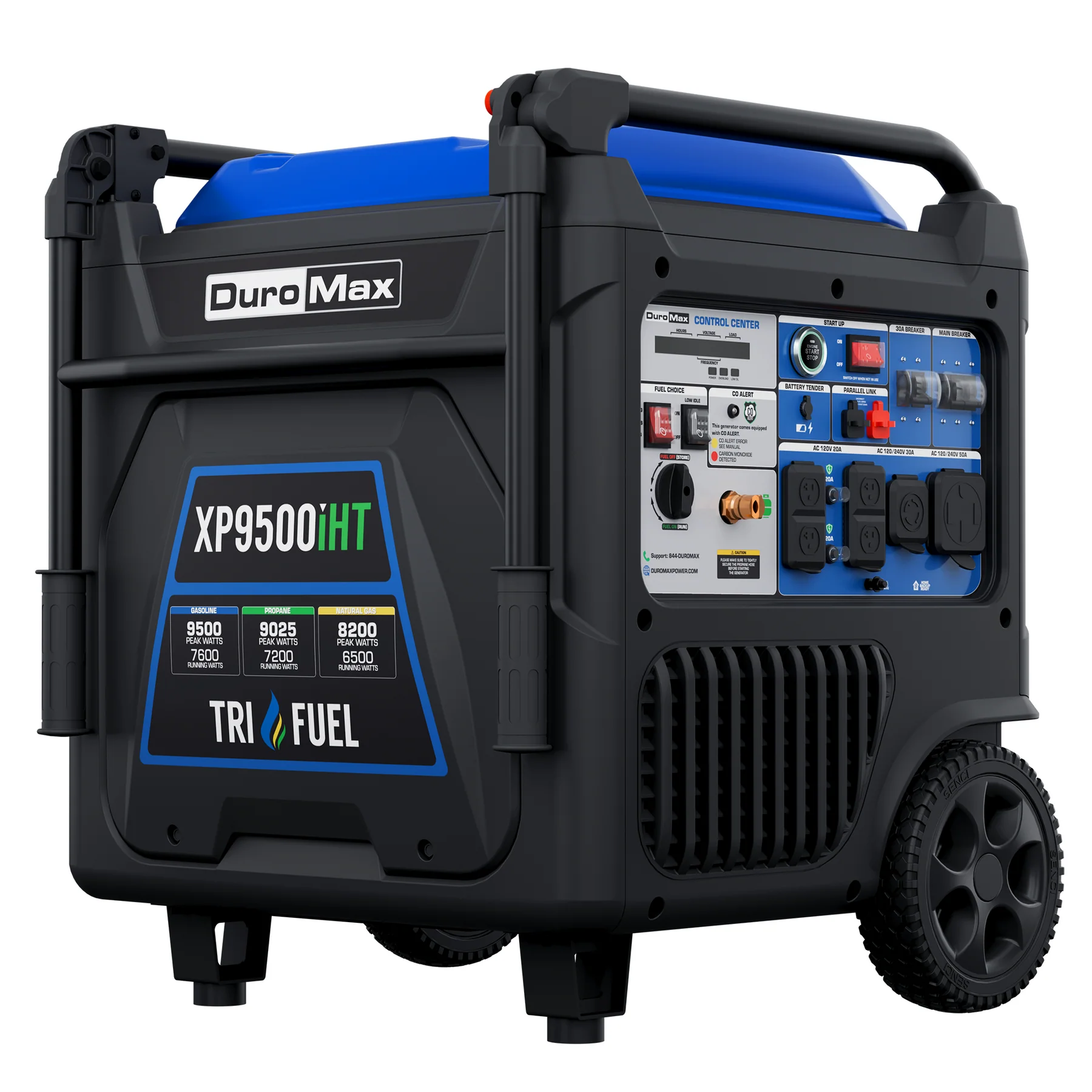

XP9500iHT Generator Specifications

Power Output

Gasoline

• Peak Wattage: 9,500W

• Running Wattage: 7,600W

• Running Amps (120V): 63.33A

• Running Amps (240V): 31.67A

• Runtime @ 25% Load: 21 hours

• Runtime @ 50% Load: 11 hours

Propane

• Peak Wattage: 9,025W

• Running Wattage: 7,200W

• Running Amps (120V): 60A

• Running Amps (240V): 30A

Runtime @ 25% Load:

• 40 lb tank: 19 hours

• 60 lb tank: 28.5 hours

• 100 lb tank: 47.5 hours

Runtime @ 50% Load:

• 40 lb tank: 10 hours

• 60 lb tank: 15 hours

• 100 lb tank: 20.25 hours

Natural Gas

• Peak Wattage: 8,200W

• Running Wattage: 6,500W

• Running Amps (120V): 54.16A

• Running Amps (240V): 27.08A

• Required Fuel Pressure: 6.0 – 9.0 in. water column

• BTU Requirement @ Full Load: 176,000 BTU

Engine & Emissions

• Engine Manufacturer: DuroMax Power Equipment

• Engine Type: 4-Stroke

• Valve Type: OHV

• Cooling Type: Forced Air

• Engine Size: 459cc

• Engine Speed: 3400 RPM

Starting & Operation

• Starting Type: Push Button

• Electric Start: Yes

• Recoil Start: Yes

• Remote Start: Yes

• Idle Control: Demand-Based Variable Idle

• Fuel Types: Gasoline, Propane, Natural Gas

• Fuel System: Carburetor

Oil & Maintenance

• Oil Type: 10W-30

• Oil Types Supported: Conventional, Blended, Synthetic

• Oil Capacity: 40.6 oz

• Oil Cooling: Splash

• Low Oil Shutdown: Yes

Safety & Compliance

• CO Sensor Shutdown: Yes

• EPA Certified: Yes

• CARB Certified: No

Generator Features

• Voltage: 120 / 240V

• Frequency: 60 Hz

• THD: <3%

• GFCI Outlets: Yes

• Winding Material: 100% Copper

Control Panel

• Battery Switch: Yes

• Volt Meter: Digital

• Hour Meter: Yes

Outlets

• 5-20R (120V): 4

• L14-30R (120/240V): 1

• 14-50R: 1

Fuel & Tank

• Fuel Tank Capacity (Gasoline): 7.1 gallons

• Fuel Gauge: Yes

• Suggested Propane Tank: 40 lb minimum

• Propane Hose & Regulator: Included (4 ft)

• Natural Gas Hose: Included (15 ft, 1/2")

Battery

• Battery Type: 12V AGM

• Battery Included: Yes

Build & Dimensions

• Product Dimensions: 26.2" L × 25" W × 29.6" H

• Dry Weight: 216 lbs

• Total Weight: 226 lbs

Noise Level

• Noise @ 25% Load: 61 dB

Applications / Best Use Cases

The XP9500iHT is a high-capacity tri-fuel inverter generator, ideal for flexible and reliable power:

✅ Home Backup Power

• Refrigerator & freezer

• Lights and outlets

• Sump pump

• Well pump

• Multiple household circuits

✅ RV & Travel Trailer Use

• 30A & 50A RV setups

• RV air conditioners

• Full RV appliance support

✅ Jobsite Use

• Power tools (saws, compressors)

• Battery charging systems

• Heavy-duty equipment

✅ Emergency Preparedness

• Extended outages

• Multi-fuel flexibility (gas, propane, NG)

• Long runtime capability

✅ Natural Gas Home Integration

• Direct home gas supply

• Ideal for long-duration backup

What Can This Generator Run? (Quick Guidance)

With 7,600 running watts (gasoline) and 6,500 watts (natural gas), this generator can typically power:

✔ Essential Home Appliances

• Refrigerator + freezer

• Lights and outlets

• Microwave

• Washer/dryer (gas dryer)

• TVs and electronics

✔ Larger Appliances

• Sump pump

• Well pump

• Electric water heater (limited use)

• Multiple window AC units

✔ HVAC Capability

• Central AC (3–4 ton typical)

• Recommended: soft start installed

✔ RV Use

• Full RV system including AC units

• 50A RV compatibility

⚠ Important Power Usage Disclaimer

The appliance examples listed above are general estimates only and may vary depending on the specific make, model, and starting wattage requirements of each device.

To ensure proper generator sizing and compatibility with your home or equipment, we strongly recommend consulting a licensed electrician to perform a power usage evaluation. This will help determine the exact wattage requirements needed for your specific setup.

Additional Features

• RV Ready: Yes

• Home Backup Ready: Yes

• Wheel & Handle Kit: Included

• Wheel Diameter: 8.5"

• Cylinder Sleeve: Boron Cast Iron

• Bearings: Stainless Steel Ball Bearing

Included in the Box

• XP9500iHT Generator

• 15 ft Natural Gas Hose (1/2")

• 4 ft Propane Hose with Regulator

• Oil Funnel

• Spark Plug Wrench

• Remote Control

• Battery Tender

• Owner’s Manual

Product Info

• Part Number: XP9500iHT

• UPC: 811640017088

• Warranty: 5-Year
